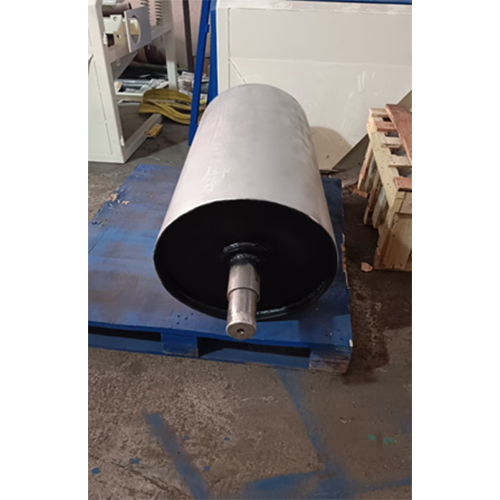

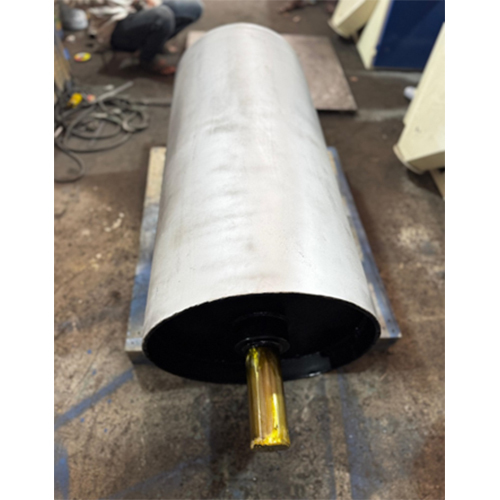

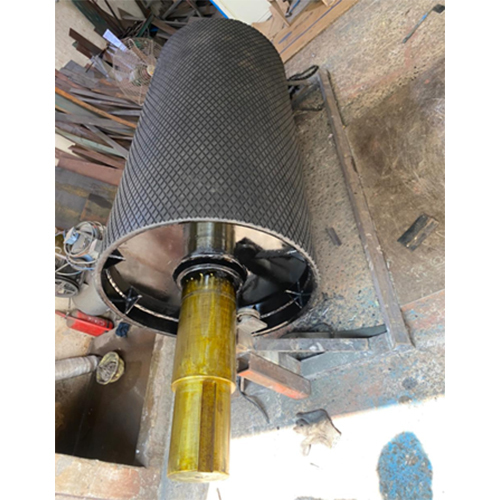

Magnetic Pulley

Name: Magnetic Pulley
Brand: JD MAGNETIC IMPEX
Price: 200000 INR
Availability: InStock

Price 200000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Magnetic Pulley Specification

Diameter
200 mm to 1200 mm

Load Capacity
Up to 10 Tons per hour

Application
Separation of ferrous materials from conveyor belt systems

Bearing Type
Heavy Duty Roller Bearing

Features
Corrosion Resistant, Durable, High Magnetic Strength

Bore
Customizable as per requirement

Pulley Type
Magnetic Pulley

Power Source
Manual Rotation / Conveyor Driven

Number Of Grooves
Single Groove

Mounting Type
Shaft Mounted

Material
Stainless Steel

Magnet Type
Permanent Ferrite or Rare Earth Magnets

Shape
Cylindrical

Surface Finish
Polished

Operation Mode
Continuous

Core Construction
Solid Magnet Core

Installation
Easy to Install and Replace

Working Temperature
-20C to 80C

Belt Width Compatibility
300 mm to 1500 mm

End Cover
Non-Magnetic Stainless Steel

Magnetic Pulley Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
7 Days

About Magnetic Pulley

Commanding in both design and performance, our Magnetic Pulley is a first-class solution engineered for the separation of ferrous materials from conveyor belt systems in demanding environments. Built to enviable standards with a solid magnet core, either in permanent ferrite or rare earth magnets, its polished stainless-steel construction ensures maximum durability and corrosion resistance. Suitable for belt widths from 300 mm to 1500 mm and load capacities of up to 10 tons per hour, it delivers continuous, reliable operation. Order now for fresh savings, easy installation, and long-lasting efficiency.

Material Feature and Plant Application

Manufactured from premium stainless steel and equipped with a solid magnet core, this Magnetic Pulley offers excellent corrosion resistance and durability, making it ideal for use in industrial plants. Its continuous operation and shaft-mounted design ensure suitability across a range of conveyor systems, particularly for the efficient removal of ferrous contaminants. It's best suited for plants such as recycling, mining, and food processing, requiring uninterrupted separation performance and minimal maintenance requirements.

Premium Packaging, Certification, and Global Reach

Each Magnetic Pulley receives premium packaging, safeguarding its polished surfaces and high-energy magnetic core during transportation and handover. Products come with necessary quality certifications, reflecting a commitment to superior standards and customer assurance. As a leading exporter, manufacturer, distributor, and supplier, we cater to diverse markets, with our main export destinations spanning Asia, the Middle East, Europe, and Africa. Our enviable reputation is supported by reliable delivery and first-class after-sales service.

FAQ's of Magnetic Pulley:

Q: How is a Magnetic Pulley installed on a conveyor system?

A: Magnetic Pulleys are designed for shaft mounting, which allows for straightforward installation and easy replacement. Detailed installation instructions are provided to ensure minimal downtime.

Q: What materials are used in the construction of the Magnetic Pulley?

A: The Magnetic Pulley is constructed from polished stainless steel and features a solid core of permanent ferrite or rare earth magnets. The end cover is made from non-magnetic stainless steel for added durability.

Q: When should you use a Magnetic Pulley in industrial applications?

A: A Magnetic Pulley is recommended when there is a need to continuously separate ferrous materials from bulk products carried on conveyor belts, such as in recycling, mining, or food processing facilities.

Q: Where are Magnetic Pulleys typically utilized?

A: These pulleys are commonly utilized in conveyor systems across industries such as mining, recycling, aggregate, and food processing, wherever ferrous contamination needs to be removed efficiently.

Q: What is the benefit of using a Magnetic Pulley with heavy-duty roller bearings?

A: Heavy-duty roller bearings ensure smooth, continuous operation and increase the pulley's load capacity and service life, making it reliable for high-volume, demanding industrial environments.

Q: How does the packaging process ensure product integrity during shipping?

A: Each Magnetic Pulley is packaged using premium materials to protect against impact, corrosion, and surface damage during transit, guaranteeing a flawless handover upon delivery.
